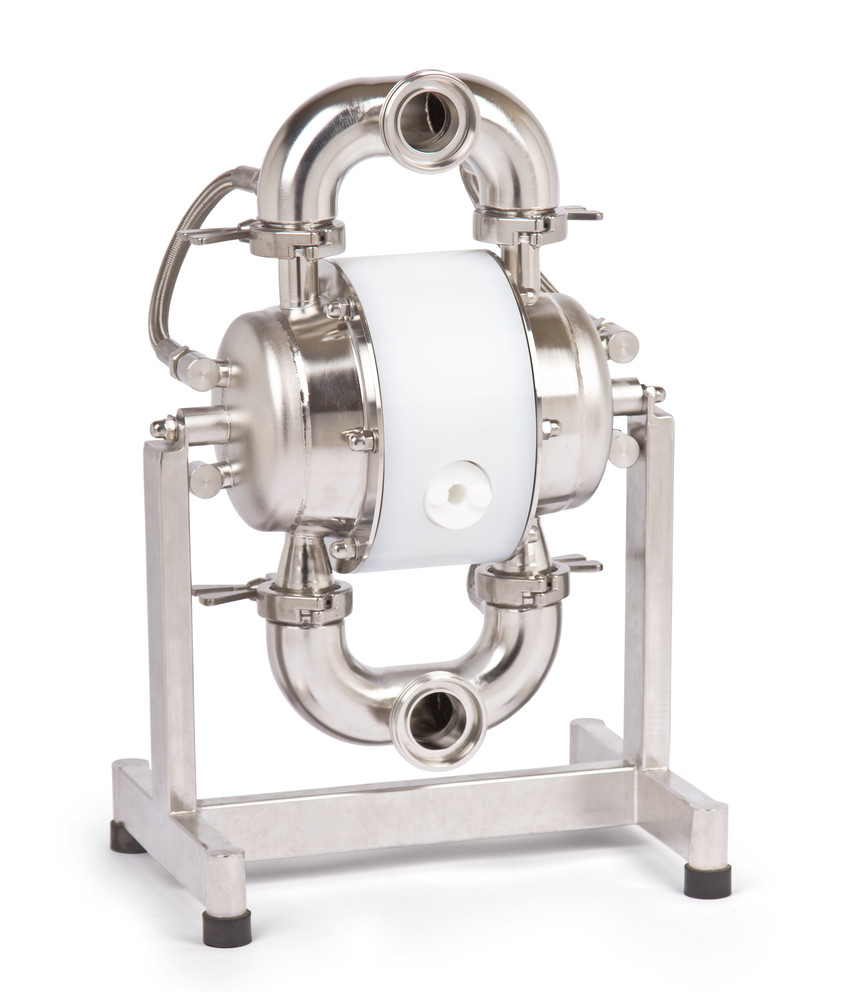

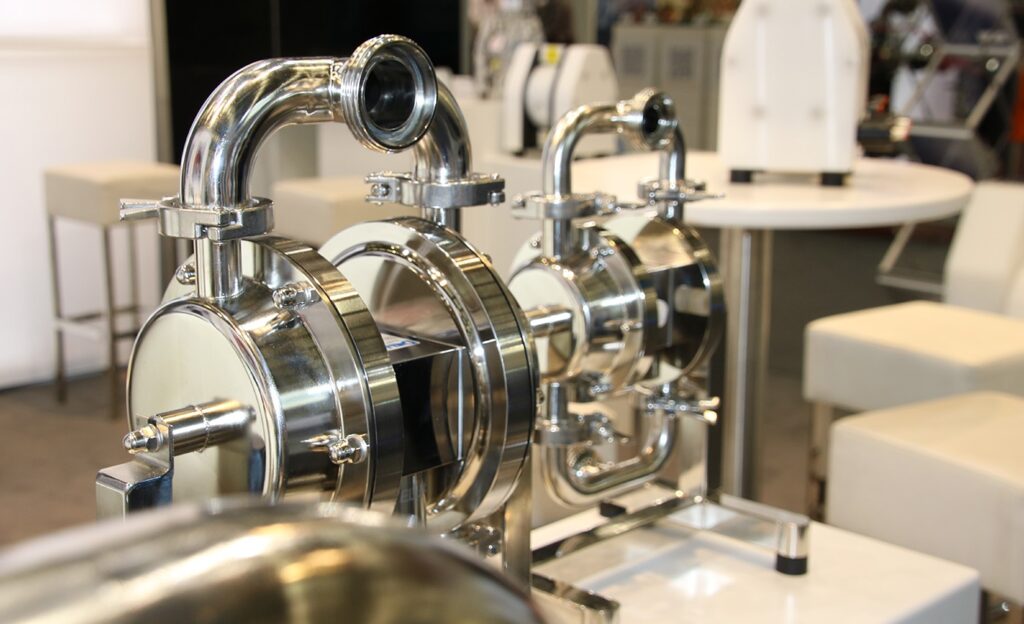

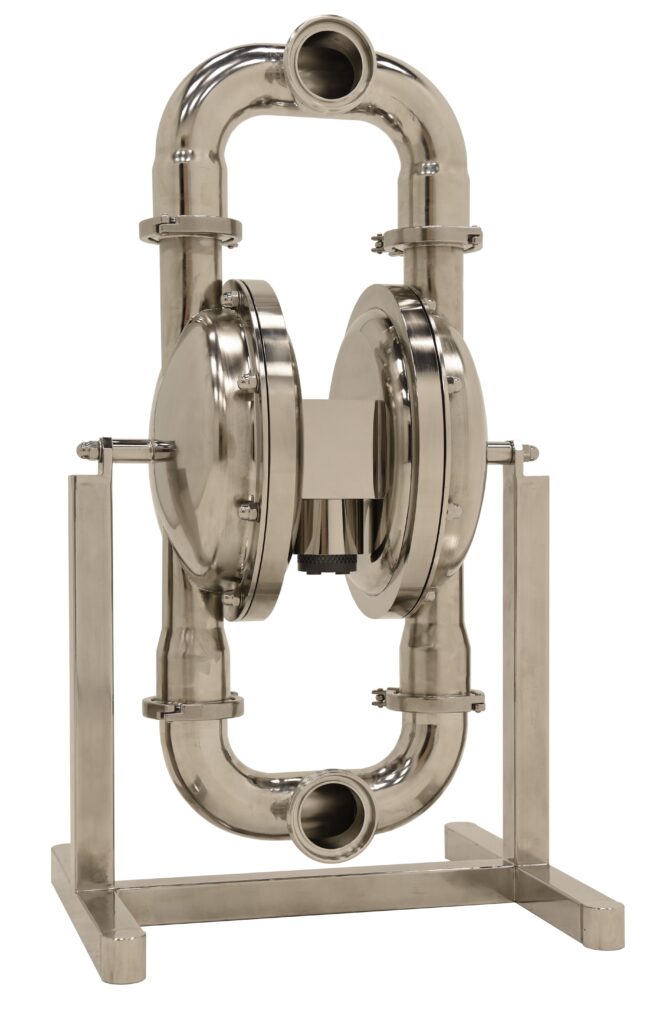

Sanitary Diaphragm Pump

“Hygienic Series” are air diaphragm pumps specifically designed to meet the demands for the food, dairy, brewery, beverage, pharmaceutical and cosmetics industry.

3A and the European Hygienic Engineering & Design Group (EHEDG) certification.




Pump designed for CIP and SIP system


Cleaning-In-Place (CIP) and Sterilisation-In-Place (SIP) are designed for automatic cleaning and disinfection without major dismantling of the pump.


The diaphragms has a plain surface which eliminates problems associated with microbial growth.


Stainless steel AISI 316L, Both the media inside and outside are electro-polished to obtain a superior hygienic finish.


Design for Compressed air Energy Saving






Unique, compact and versatile design combining high-tech with proven reliability and quality

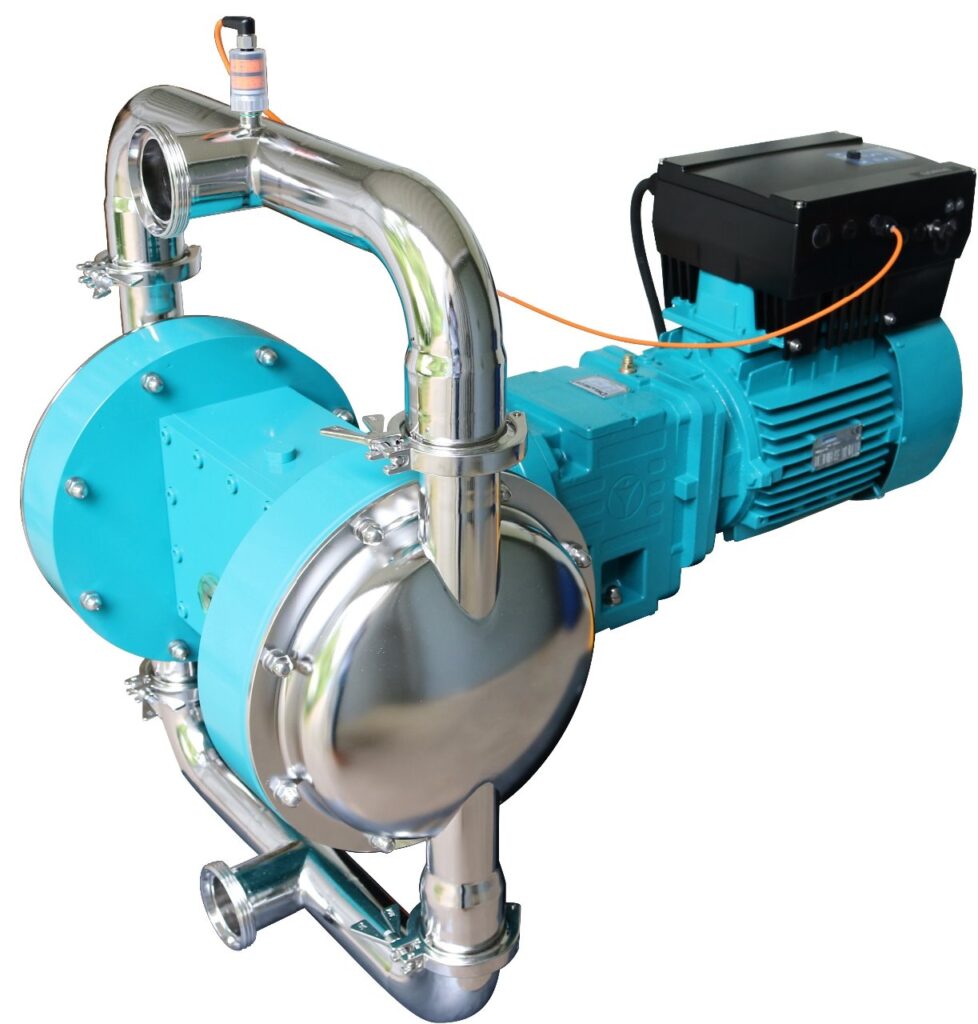

Air operated and electro-mechanical options with low air and energy consumption

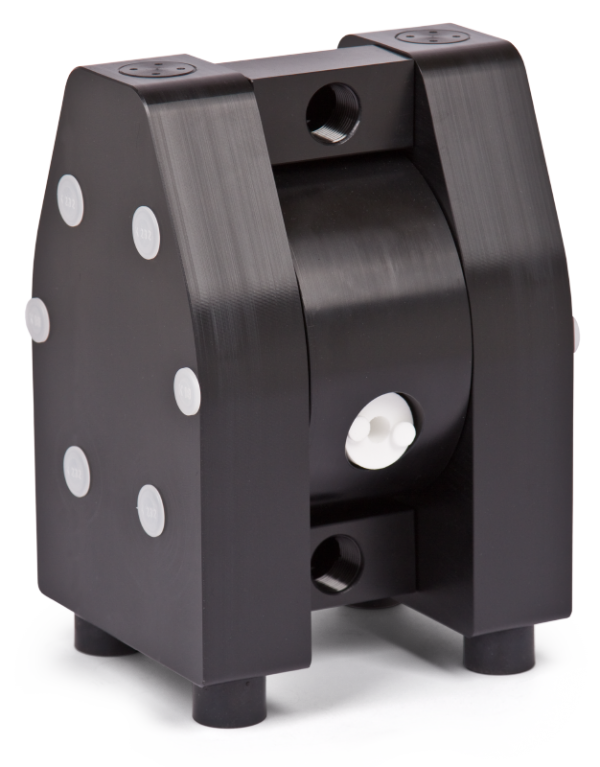

Can be installed in hazardous areas with explosion proof designs (ATEX)


’Out in Front’ of the industry standards: self-priming, can run dry without heat build-up or wear, adjustable flow by simple air/frequency regulation, long life diaphragms for heavy duty applications (no diaphragm discs), operating without lubrication or seals


Easy ‚preventive maintenance planning‘ (PMP) and minimum maintenance costs




NEW : No more compressed double diaphragm pump

The best solution for energy saving diaphragm pump.


Diaphragm pump for All of Industrial Application





Air operated diaphragm (AODD) pumps are suitable for a wide range of applications.


They have a high abrasive resistance and withstand aggressive chemicals including acids, oils, solvents, paints, sludges and even media containing solid particles such as found in waste water. These pumps can also be used for transferring powders.


All the pumps are self-priming and the capacities and pressure can be easily controlled.

This pump is a positive-displacement pump that transfers fluids by means of diaphragms movement operated by compressed air.

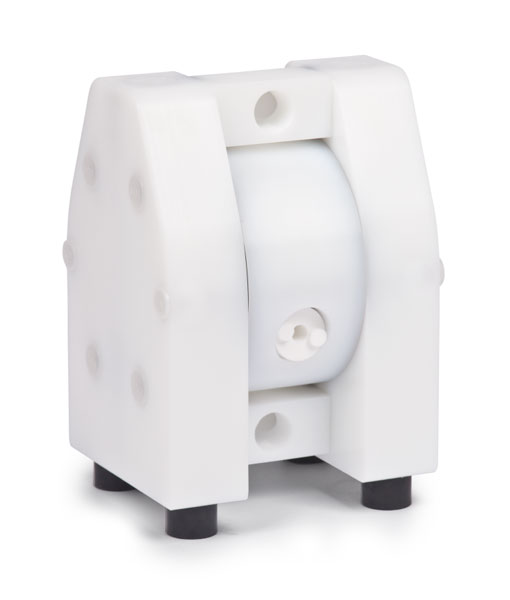

Housings machined from PE, PTFE, conductive PE and PTFE, aluminum, cast iron, AISI 316 (industrial) and AISI 316L (hygienic)

Designed to operate within a temperature range from -40 to +200 degrees Celsius

Special designs for liquids, powders, abrasive and/or corrosive media

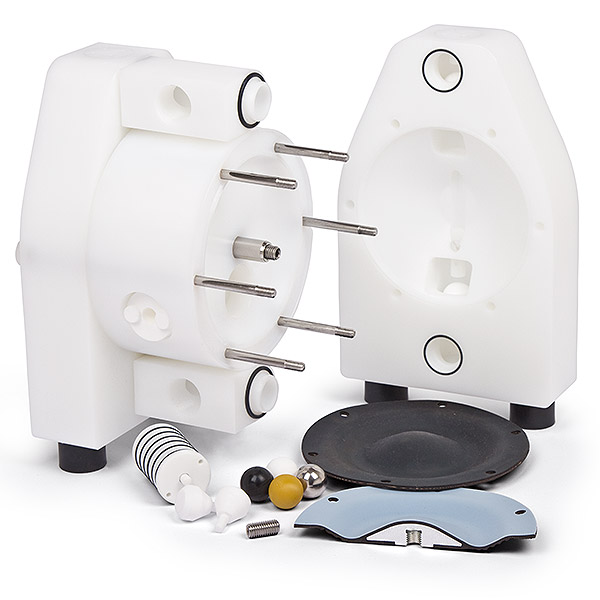

Choice of Material for your application

Diaphragm materials made in EPDM, NBR, and/or TFM/PTFE

Ball valves in EPDM, NBR, PTFE, PU (polyurethane) ceramics or AISI 316

Cylinder valves in PE or PTFE (for Plastic pump series only)

Air valves in PETP with FPM or NBR seals, brass with FPM or EPDM seals, AISI 316L with FPM seals


Wide range application for your success :

No more compresses air diaphragm pump : The best solution for energy saving

Designed especially for ultra high purity chemicals such as used in the solar, semiconductor and pharmaceutical industries
